Optimal Audio ZonePad 1 Wall Controller

ZonePad 1 - Single zone wall controller

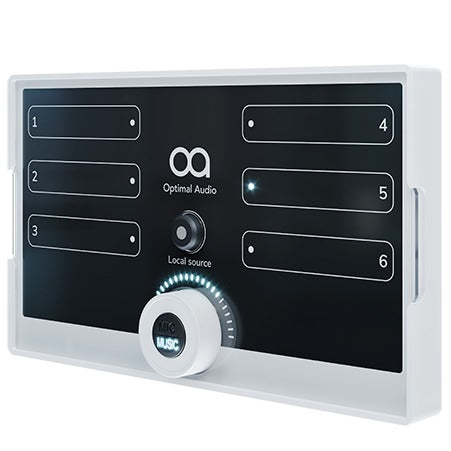

ZonePad 1 is an elegant wall-mounted controller, providing users clear and simple access to the essential controls of one zone of an Optimal Audio system. It connects to a Zone controller via Cat5 — up to 500m away — and draws power directly over the same connection, with no separate power supply required.

It features a clean, intuitive touch interface for source selection and volume control of the assigned zone. A local microphone input with 48V phantom power and a mono line input allow additional sources to be connected directly at the ZonePad — useful for a handheld microphone or a local audio source in the zone.

Zone labels and source names are customisable using the included label template, giving venue staff a clear, personalised interface that reflects their specific installation.

Features

• Remote control wall panel for control of an individual zone
• Contemporary design fits in with any décor
• Intuitive layout with touch sensitive controls
• Easily configured to suit your venue
• Includes one local mic and one mono music input
• Connects to Zone controller via Cat5 — up to 500m
